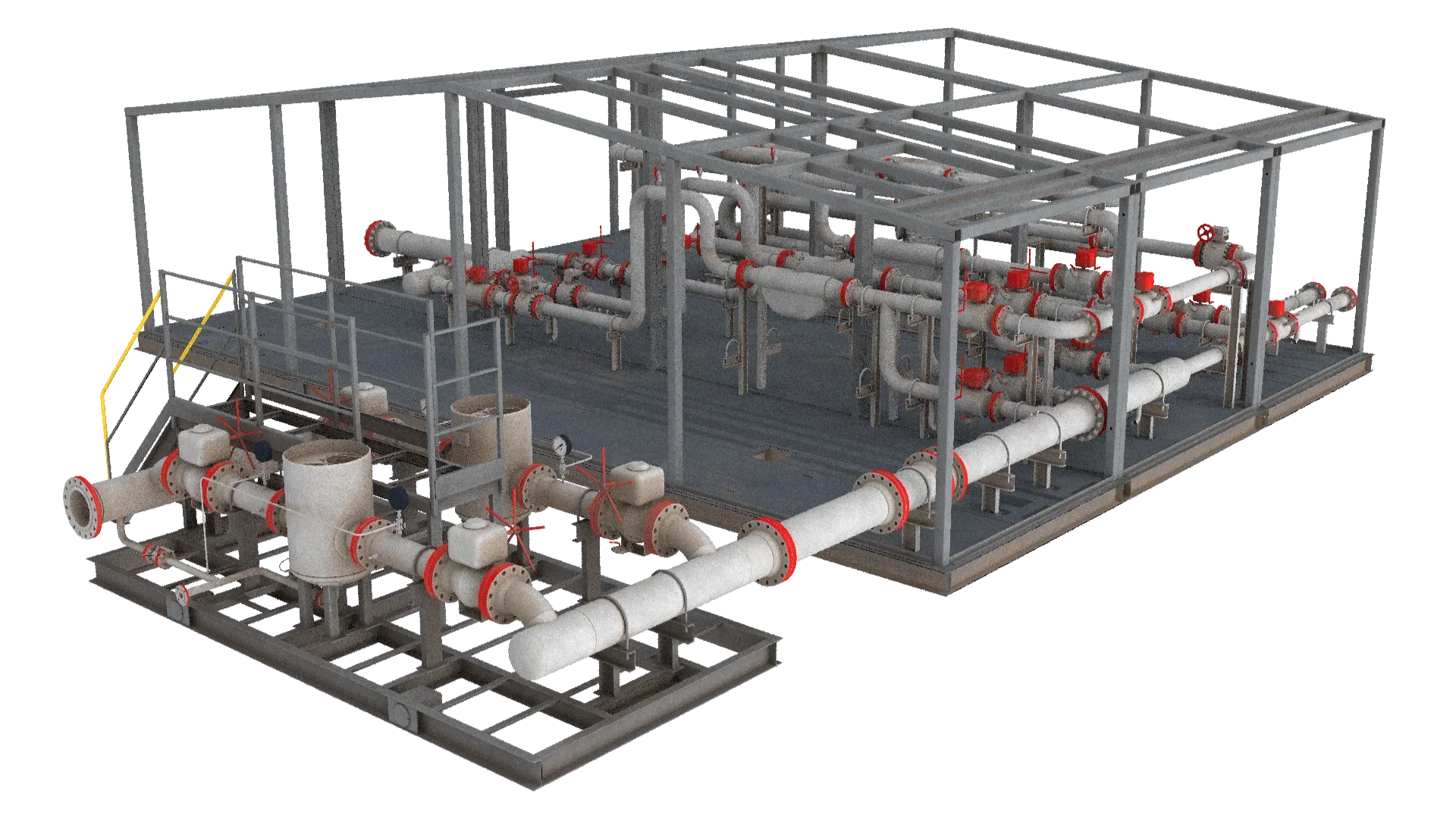

Сrude oil custody transfer metering system

Сrude oil custody transfer metering system is designed for the automated metering of oil and petroleum products quantity, as well as determination of their key quality parameters.

Click to enlarge

Equipment purpose

Quantity metering

Automated metering of oil and petroleum products.

Quality control

Determination of oil density, viscosity, and water content.

Parameter monitoring

Pressure and temperature measurement of the working medium.

Sample drawing

The drawing of oil samples in accordance with GOST 2517 (Russian National Standard).

Data transmission

The transmission of data into the automation system and operator workstation.

Configuration flexibility

The system is manufactured on the basis of volumetric, ultrasonic or mass flow transmitters.

Operating principle

The system provides automatic metering of oil quantity and its quality inspection. The metering data is transmitted into the automation system, archived, and displayed at the operator's workstation.

Issuance of information transmitted by automation facilities and its subsequent archiving and displaying on the operator's automated workstation.
