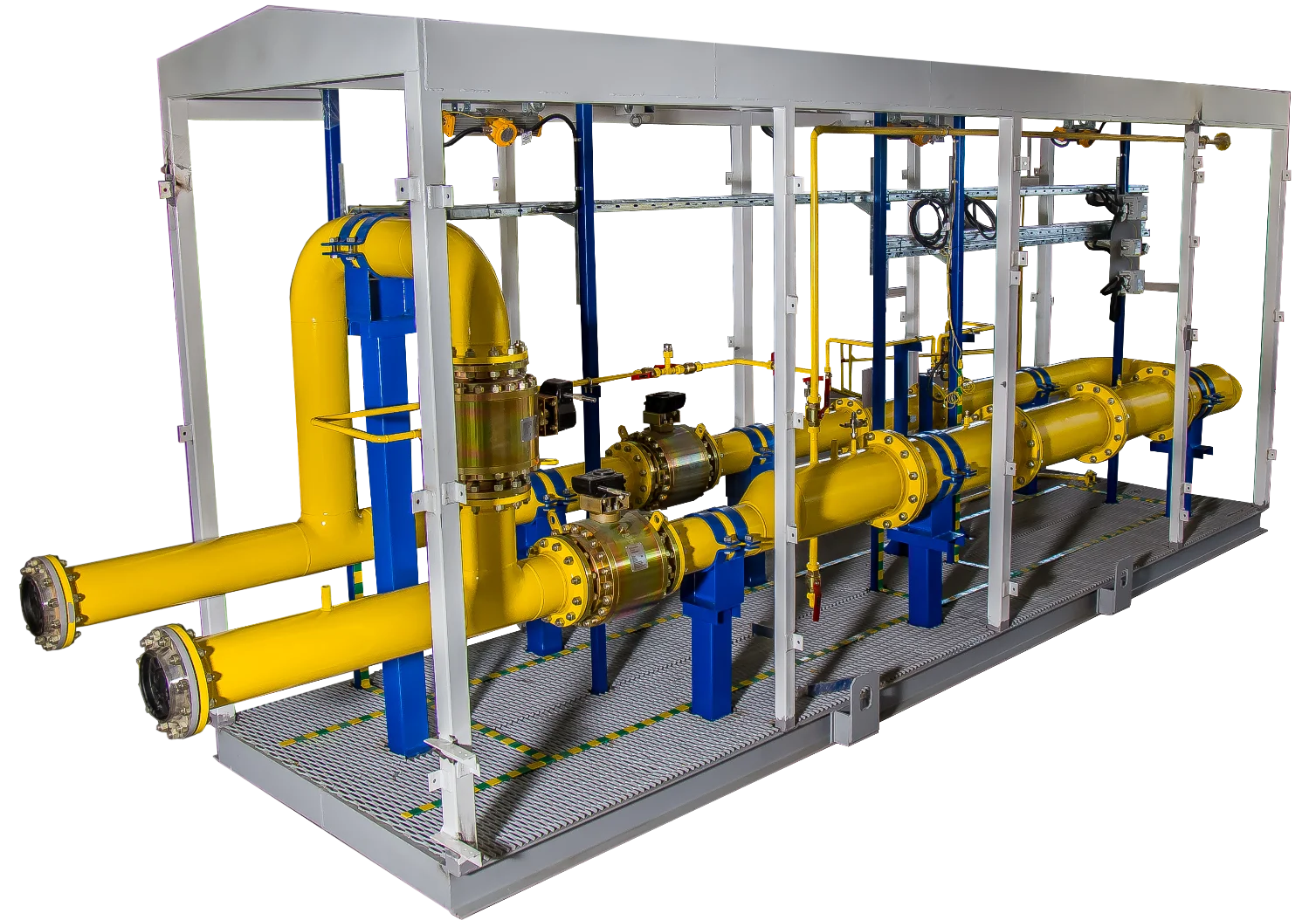

Gas custody transfer metering system

Gas custody transfer metering system is designed for the automated metering of associated and non-associated gas, as well as their compositional analysis during storage, transportation, processing.

Click to enlarge

Gas metering

Automated metering of associated and non-associated gas.

Commercial metering

Used for settlement operations between enterprises.

Compositional control

Gas composition analysis.

Application

Used at gas treatment units and between gas producing enterprises and gas transmission operators.

Parameter monitoring

Pressure and temperature measurement of the working medium.

Data transmission

The transmission of data into the systems of centralized control and in-process monitoring.

Standard configuration:

The system consists of flow meters, flow computers, pressure regulators, gas composition analyzers, and hardware-software control means.
