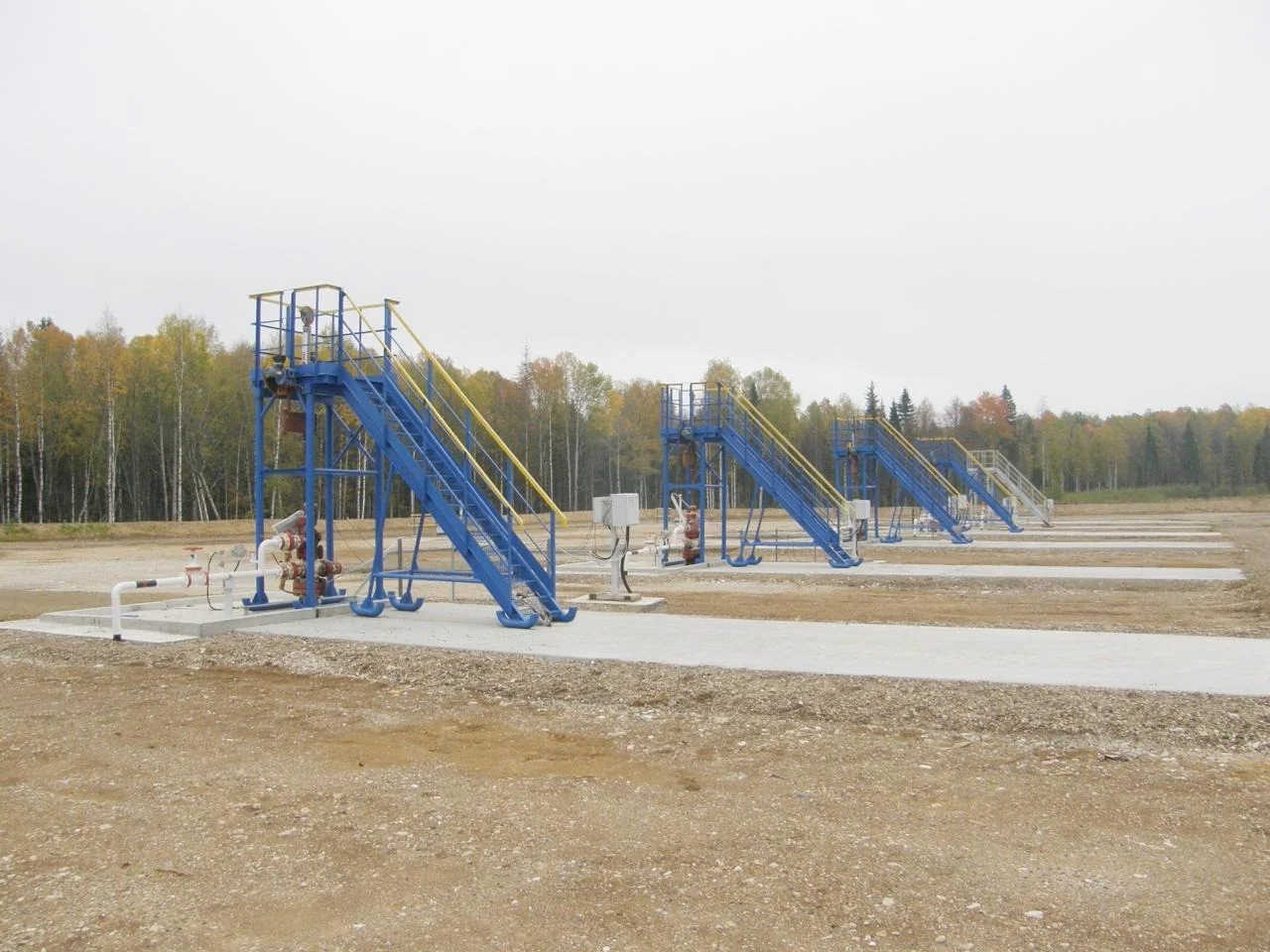

Tubing String Clarifier

For automatic continuous cleaning of the inner surface of a well's tubing string by cutting a layer of paraffin wax from the walls.

Click to enlarge

Purpose

String Cleaning

Automatic removal of paraffin and mechanical deposits from the inner surface of the tubing string.

Paraffin plug prevention

Reduces the risk of paraffin plug formation and pipeline clogging during well operation.

Stable Well Performance

Helps to maintain the flow capacity of the tubing string and ensures stable oil production.

Advantages

Wire spooling problems are prevented through the use of a spring-loaded movable roller with a weight sensor;
A fully automated process for eliminating wax plugs;
Calibration of the scraper's position with an accuracy of up to 40 cm.;
The scraper is available in several basic designs: telescopic, annular, milling, blade-type, auger-type, and others.;
The scraper is available in several basic designs: telescopic, annular, milling, blade-type, auger-type, and others.

Magnets are installed on the roller, and reed sensors ensure the sequential activation of the reed switches in the direction of the roller's rotation.
