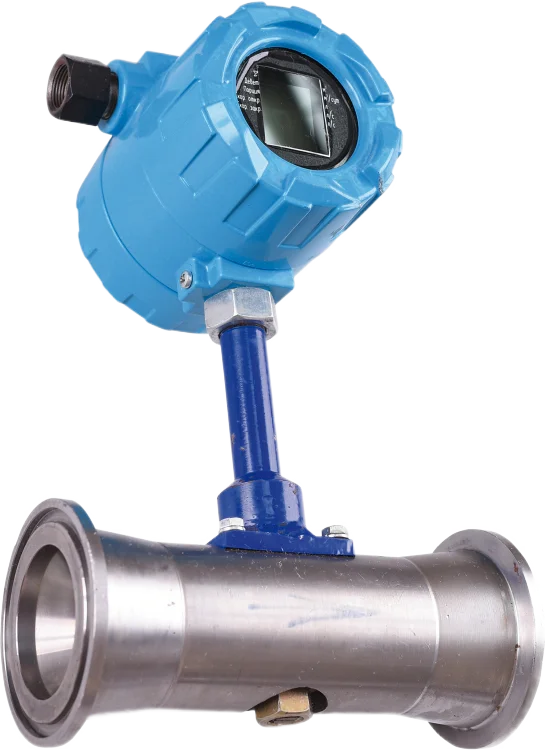

ERVIP Vortex flowmeter

High-precision industrial intrument for measuring liquid and gas flow rate in the "Sputnik" automated group metering skids.

Click to enlarge

Advantages

Stable readings and high-precision liquid and gas flow rate metering.

Easy maintenance and industrial grade high reliability

Service life is 12 year.

High tolerance to pollution and stable operation in the complicated conditions.

Up to 4 years without recalibration

Flexible measurement range setting

The flow measurement is based on the formation of a Kármán vortex street behind an obstacle in the flow of the medium.

The vortex formation frequency is proportional to the flow velocity, which allows accurate determination of liquid and gas flow rates.

A piezoelectric crystal inside the obstacle generates electrical impulses that are measured by the electronics of the vortex flowmeter.
